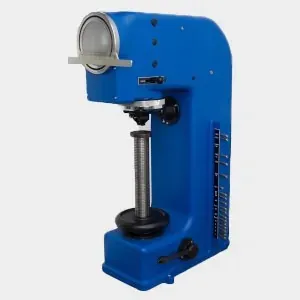

Wolpert Dia Testor 2 Rc, 1-Hebel

Testing methods:

• Brinell DIN EN ISO 6506
• Vickers DIN EN ISO 6507
• Rockwell DIN EN ISO 6508

Test force ranges:

• HV 5 – 10 – 20 – 30 – 40 – 50 – 125 kgf
• HB 15.625 – 31.25 – 62.5 – 187.5 – 250 kgf
• HR 60 – 100 – 150, preload 10 kgf

Test height – reach:

• 0 – 300 / 150 mm

Dimensions (H x W x D):

• 940 x 350 x 610 mm

Net weight:

• 200 kg

Power supply:

• 230 V, 50-60 Hz

Color:

• Structured paint Isserstedt blue RAL 5017

Standard accessories:

• Complete optical equipment with vertical illuminator and interchangeable 70x objective lens
• Matte screen with Fresnel lens
• Ball holder 2.5 mm Ø with certificate
• Clamping cap
• Test table 80 mm Ø
• Threaded spindle with hand wheel
• LED lighting

Optional accessories:

• Rockwell test diamond with certificate
• Vickers test diamond with certificate
• 140x objective lens
• Ball holder 5 mm Ø with certificate
• Support table 300 mm Ø

Factory certificate:

• The machine is calibrated with DAkkS-monitored measuring instruments and delivered in an acceptable condition with a factory certificate.

Warranty:

• 12 months in single-shift operation, 6 months in multi-shift operation, excluding misuse.
